ENGINES & PARTS
TBS Engines The Block Shop

TBS ENGINES CRATE ENGINES

TBS crate engines
TBS Crate engines

TBS Engines

offers crate engines, whether it is to get your vehicle refurbished or you want to hit the track, we can supply your next crate engine.

TBS Engines also has marine crate engines.

We can also offers installation of your new crate engine or just supply you the engine.  Contact us today for more info!
Proud Distributors / Dealers for
Blue Print
ATK

Below are some examples of our inventory and if we don’t carry it, we can order it!
  • TBS Engines
    • Back
    Next

BluePrint Engines 396CI Stroker Crate Engine

Small Block GM Style | Base Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam

Description:


• HP & Torque: 491 HP / 509 FT LBS
• Compression Ratio: 10.4:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:


• NEW BluePrint Cast Iron Block
• Manufactured and Machined in the USA!
• Align honed main bearing bore
• Cylinders honed on computer controlled machine to within .0002 straightness and roundness
• Cylinders are sonic tested for thickness
• 4-Bolt Main
• 4.000" Bore
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes
• Passenger Side Dipstick
• Drilled and tapped for clutch linkage

Rotating Assembly:


• New BluePrint Forged Crankshaft
• 3.875 " Stroke
• Forged I-beam 6.000" connecting rods
• Forged Pistons
• Internal Front/ External Rear

Cylinder Heads:


• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc chamber
• 2.08" intake/1.60" exhaust valves
• 220cc intake/67cc exhaust runners

Cam Specs:


• Cam Type: Roller
• 544 Intake .555 Exhaust
• 230 Intake / 236 Exhaust duration
• @ .050, 110 ° lobe separation angle

Ignition Timing:


• 34 degrees total at 3500 RPM

Also Includes:


• New valve covers, oil pan and timing cover
• Aluminum Intake Manifold
• HEI distributor
• 850cfm Carburetor
• Dyno test results shipped with engine
$12,000 + $0 Core + GST
1 in stock
Dyno ReportDyno Report

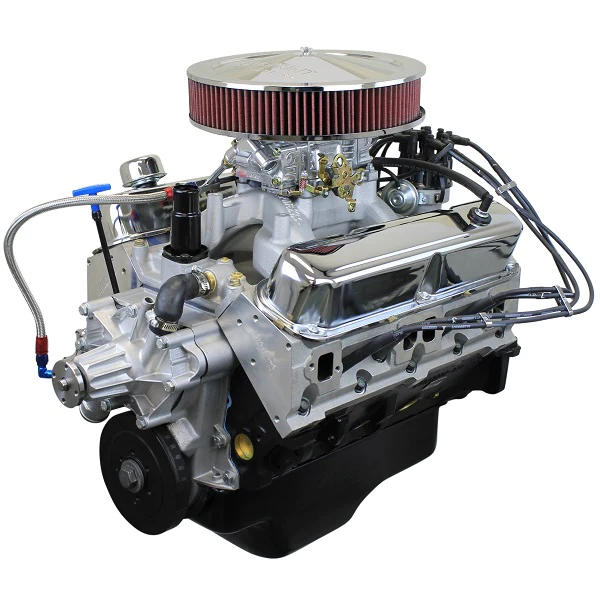

BluePrint Engines 408CI Stroker Crate Engine

Small Block Chrysler | Deluxe Dressed | Aluminum Heads | Roller Cam

Description:


• HP & Torque: 465 HP / 494 FT LBS
• Compression Ratio: 10:1
• Aluminum Heads
• Roller Cam
• Cast Steel Crank
• Forged Pistons

Block:


• Hand picked seasoned Magnum block
• Square and parallel decked
• Align honed main bearing bore
• Cylinders honed on computer controlled machine to within .0002 straightness and roundness
• Cylinders are sonic tested for thickness
• 2-Bolt Main
• 4.000" Bored .040" over
• 2-Piece Rear Main Seal
• Mech fuel pump provision: Yes



Rotating Assembly:


• New Steel crankshaft
• 4.000" Stroke
• Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
• Forged pistons
• External

Cylinder Heads:


• BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
•Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
•Aluminum Roller Rockers
•2.02" intake/1.60" exhaust valves
•176cc intake/75cc exhaust runners

Cam Specs:


• Cam Type: Roller
• .580 Intake .577 Exhaust
• 236 Intake / 242 Exhaust duration
• @ .050 - 110 degree lobe separation

Ignition Timing:


• 34 degrees total at 4000 RPM

Also Includes:


• Valve covers, Oil Pan and Timing cover
• Standard Rotation Driver Side Inlet Water Pump
• Plugs, Wires & Distributor
• Thermostat & Water Neck
• Fuel Pump & Fuel Line
• Harmonic Balancer & Air Cleaner
• Dyno Test Results shipped With Engine

Notes:



• If installing with a Manual Transmission with .750" input shaft, Recommended Pilot bearing is PN FC-69907.  Recommended Pilot OD is 1.81"
408CI Stroker Crate Engine
$13,800 + $0 Core + GST
1 in stock
Dyno ReportDyno Report

Remanufactured Chevrolet 4.3L Marine


• Long Block ATK # DMK9
• Block Casting # 090
• Cylinder Head Casting # 772 or 140

$3,600 + $285 Core + GST
1 in stock

Remanufactured Chevrolet 5.7L / 350


• 300HP
• Hydraulic Roller Camshaft
• 4 Bolt Main
• Oil Pan, Valve Covers & Timing Cover
• Long Block ATK # VCM5RC
• Add $349.99 for Performance World Dual Plane Intake Manifold (650100)
• Add Spark Plugs Autolite #24 (Cooler) or #25 (Hotter) $6.00 Each

$4,100 + $600 Core + GST
ARRIVING SOON!
